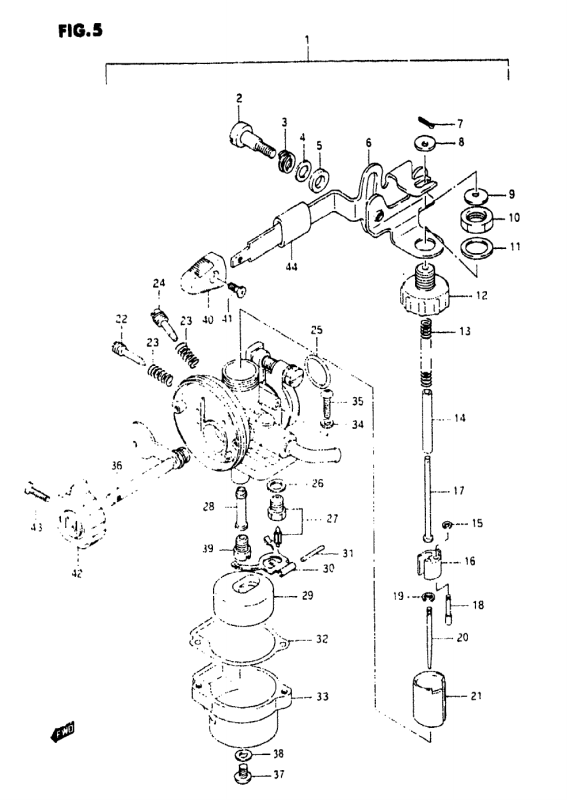

Carburetor (Model :90-97)
View Larger Photo
Ref #
Part #
Description
Manufacturer
List Price
Your Price
Price is per part
#Req
5
13432-33110
Washer
Suzuki
$3.95
1
13
13573-98411
Supersedes:
13573-98410
Spring, Throttle Valve
Suzuki
$2.95
1
15
13533-98410
E Ring
Suzuki
$3.95
1
18
13563-98410
Pin, Seat
Suzuki
$4.95
1
19
13394-40D00
Supersedes:
13394-12110
Clip, Needle
Suzuki
$3.95
1
20-1
13383-98410
Needle, Jet
Note: DT2
Suzuki
$6.95
1
22
13267-01010
Screw, Throttle Stop
Suzuki
$5.99
$5.95
1
23
13268-01010
Spring
Suzuki
$3.95
2
24
13269-01010
Screw, Air
Suzuki
$9.95
1
26
13392-01010
Gasket, Valve Seat
Suzuki
$1.95
1
27
13370-23010
Supersedes:
13370-96210
13370-93631
Valve, Needle
Suzuki
$52.95
1
28
09494-00179
Nozzle, Needle
Suzuki
$11.99
$11.95
1
29
13252-98430
Float
Suzuki
$13.95
1
30
13253-98430
Arm, Froat
Suzuki
$5.95
1
31
13254-98410
Pin, Froat
Suzuki
$1.95
1
36
13586-98410
Shaft, Choka
Suzuki
$14.09
1
37
09125-05122
Supersedes:
02112-05067
02112-05062
Screw
Suzuki
$1.95
1
38
13523-46110
Supersedes:
13512-46110
Gasket
Suzuki
$2.95
1
39-3
09491-80011
Jet, Main (#80)
Note: OPT
Suzuki
$10.95
1
40
88851-64001
Supersedes:
88851-64000
Knob, Throttle Link
Suzuki
$3.99
$3.95
1
41
02122-03067
Supersedes:
02132-03068
02131-03067
Screw
Suzuki
$1.95
1
42
13631-98410
Supersedes:
13631-98400
Knob, Choke
Suzuki
$4.74
1
43
02112-03107
Supersedes:
02112-03102
Screw
Suzuki
$1.02
1
44
09352-70113-600
Protector, Throttle Lever
Note: L:600->20
Suzuki
$10.95
1
