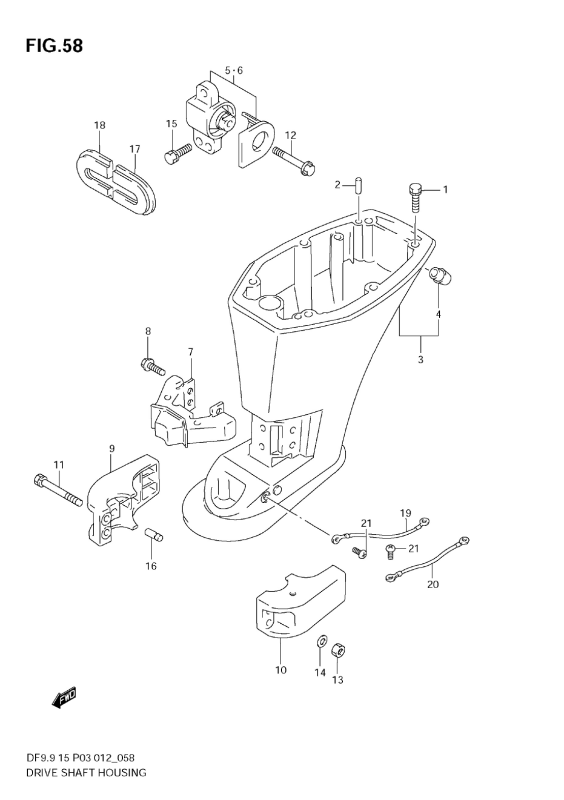

Drive Shaft Housing (Df15)
View Larger Photo
Ref #
Part #
Description
Manufacturer
List Price
Your Price
Price is per part
#Req
1
09116-08122
Supersedes:
09116-08099
Bolt (8x30)
Suzuki
$3.99
$3.95
6
2
09202-06023
Pin
Suzuki
$2.95
2
3-1
52110-93E70-0EP
Supersedes:
52110-93E50-0EP
Housing, Drive Shaft (S) (Black)
Note: W/TRANSOM(S)
Suzuki
$384.95
1
3-2
52110-94J20-0EP
Supersedes:
52110-94J00-0EP
52110-94J10-0EP
Housing, Drive Shaft (L) (Black)
Note: W/TRANSOM(L)
Suzuki
$523.95
1
4
43112-99E00
Pipe, Exhaust
Suzuki
$3.95
1
5
54180-93E01
Mount, Upper Starboard
Suzuki
$52.95
1
6
54190-93E01
Mount, Upper Port
Suzuki
$52.95
1
7
54160-93E02
Mount, Lower
Suzuki
$40.95
1
8
09116-08137
Supersedes:
09116-08121
09116-08103
Bolt (8x22)
Suzuki
$6.68
4
9
54211-94J20-0EP
Supersedes:
54211-94J00-0EP
54211-94J10-0EP
Cover, Lower Mount Starboard (Black)
Suzuki
$82.95
1
10
54221-94J20-0EP
Supersedes:
54221-94J00-0EP
54221-94J10-0EP
Cover, Lower Mount Port (Black)
Suzuki
$82.99
$82.95
1
11
09116-08138
Bolt (8x40)
Suzuki
$4.95
2
12
09116-08138
Bolt (8x40)
Suzuki
$4.95
2
13
29141-93J10
Nut
Suzuki
$2.99
$2.95
2
14
09160-08082
Supersedes:
09160-08083
09160-08070
Washer (8.5x16x1.2)
Suzuki
$1.95
2
15
09116-08122
Supersedes:
09116-08099
Bolt (8x30)
Suzuki
$3.99
$3.95
4
16
54213-93901
Supersedes:
54213-939L0
Pin
Suzuki
$6.95
2
17
54144-94J00
Seal, Upper Mount Port
Suzuki
$9.95
1
18
54145-94J00
Seal, Upper Mount Starboard
Suzuki
$9.99
$9.95
1
19
36894-95201
Supersedes:
36894-92D01
36894-92D00
Lead, Mount To Hsg (L:165)
Suzuki
$9.95
1
21
29125-93J10
Screw, Lead (5x8)
Suzuki
$1.99
$1.95
2
