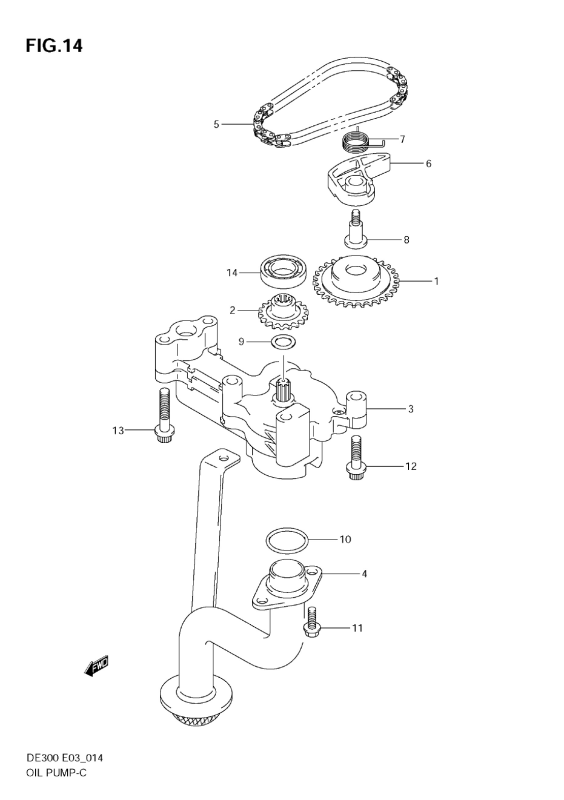

Oil Pump
View Larger Photo
Ref #
Part #
Description
Manufacturer
List Price
Your Price
Price is per part
#Req
1
12632-93J11
Supersedes:
12632-93J10
Sprocket, Oil Pump Drive
Suzuki
$45.95
1
2
16113-93J10
Sprocket, Oil Pump Driven
Suzuki
$25.95
1
3-2
16400-93J02
Supersedes:
16400-93J01
16400-93J00
Pump Assy, Oil
Note: DF300T:881419~ DF300Z:880619~
Suzuki
$182.95
1
4
16520-93J00
Strainer, Oil Pump
Suzuki
$35.95
1
5
16760-93J00
Chain, Oil Pump Drive
Suzuki
$32.95
1
6
16781-93J00
Tensioner, Oil Pump Chain
Suzuki
$17.95
1
7
16782-93J00
Spring, Oil Pump Tensioner
Suzuki
$6.99
$6.95
1
8
16783-93J01
Supersedes:
16783-93J00
Bolt, Oil Pump Tensioner
Suzuki
$4.95
1
9
09181-12158
Washer, Drn Sprkt (12x20x0.5)
Suzuki
$1.95
1
10
09280-22020
Supersedes:
48576-97E00
O Ring, Oil Strainer (D:2.4, Id:21.8)
Suzuki
$3.95
2
11
01550-0616A
Supersedes:
01550-06163
01517-06163
Bolt, Oil Strainer
Suzuki
$1.95
3
12
01550-0845A
Supersedes:
01550-08453
01517-08455
01537-08455
Bolt, Oil Pump (S)
Suzuki
$2.95
1
13-1
01550-0865A
Supersedes:
01550-08653
01517-08655
01514-08655
Bolt, Oil Pump (L)
Suzuki
$2.99
$2.95
4
13-2
01550-0865A
Supersedes:
01550-08653
01517-08655
01514-08655
Bolt, Oil Pump (L)
Note: DF300T:881419~ DF300Z:880619~
Suzuki
$2.99
$2.95
3
13-3
01550-0885A
Bolt, Oil Pump (L)
Note: DF300T:881419~ DF300Z:880619~
Suzuki
$2.95
1
14
08110-60020
Bearing, Oil Pump Driven
Suzuki
$14.67
1
