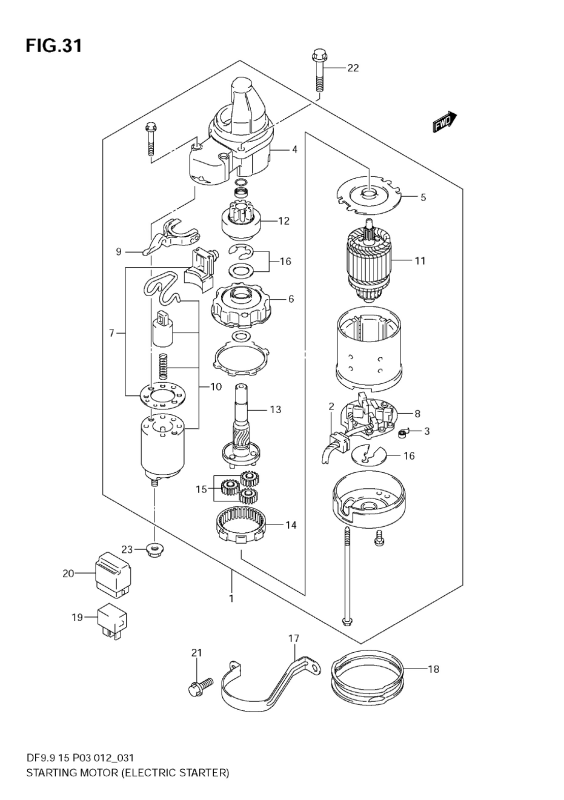

Starting Motor (Electric Starter)
View Larger Photo
Ref #
Part #
Description
Manufacturer
List Price
Your Price
Price is per part
#Req
1
31100-94J21
Supersedes:
31100-94J20
31100-94J10
Starting Motor
Suzuki
$845.95
1
2
31131-94J00
Brush Set, Plus
Suzuki
$31.95
1
3
31135-90J00
Spring
Suzuki
$6.99
$6.95
4
4
31151-94J00
Supersedes:
31151-93J00
Case, Gear
Suzuki
$139.95
1
6
31153-90J00
Bracket, Planet Gear
Suzuki
$30.95
1
7
31171-96J00
Cover Kit, Dust
Suzuki
$13.95
1
8
31173-94J00
Holder Assy, Brush
Suzuki
$102.95
1
9
31191-96J00
Lever, Shift
Suzuki
$15.95
1
10
31220-94J00
Switch, Magnet
Suzuki
$215.95
1
11
31310-90J00
Armature
Suzuki
$435.95
1
12
31320-94J00
Pinion
Suzuki
$202.95
1
13
31341-94J00
Shaft, Pinion
Suzuki
$102.95
1
16
31360-93J01
Supersedes:
31360-93J00
Washer Set
Suzuki
$10.95
1
19
38860-76F01
Relay, Starting Motor
Suzuki
$31.31
1
20
38915-90J00
Holder, Relay
Suzuki
$3.95
1
21
01550-08207
Supersedes:
01810-08207
Bolt
Note: LOWER
Suzuki
$2.95
2
22
01550-08257
Supersedes:
01517-08252
Bolt
Suzuki
$2.95
2
23
08316-10087
Supersedes:
08316-16082
Nut
Suzuki
$2.95
1
