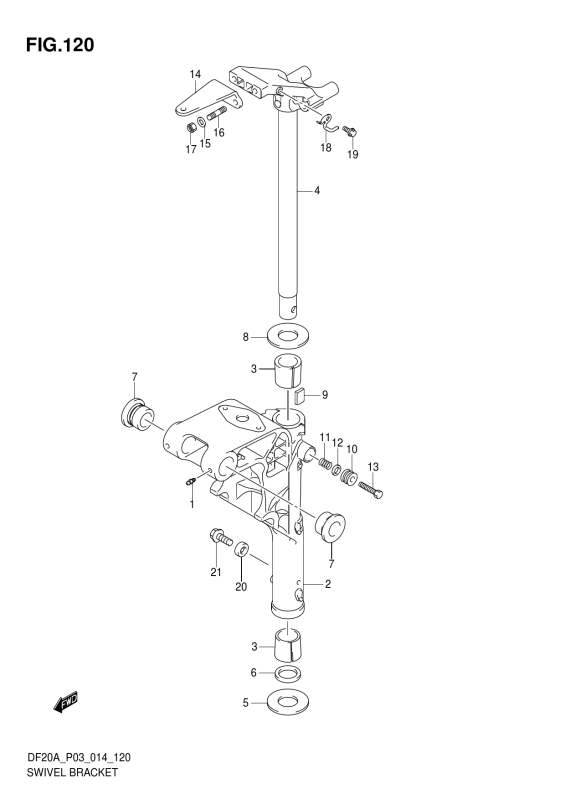

Swivel Bracket (Df20at P03)
View Larger Photo
Ref #
Part #
Description
Manufacturer
List Price
Your Price
Price is per part
#Req
1-1
22511-99011
Supersedes:
22511-99010
22511-99003
22511-99002
22511-99001
22511-99000
Nipple
Note: W/TRANSOM(S)
Suzuki
$3.95
3
1-2
22511-99011
Supersedes:
22511-99010
22511-99003
22511-99002
22511-99001
22511-99000
Nipple
Note: W/TRANSOM(L)
Suzuki
$3.95
4
2-1
43111-89LB0-0EP
Bracket, Swivel (S) (Black)
Note: W/TRANSOM(S)
Suzuki
$334.95
1
2-2
43111-89LA0-0EP
Bracket, Swivel (L) (Black)
Note: W/TRANSOM(L)
Suzuki
$326.95
1
3
43711-94JA0
Bush, Steering
Suzuki
$53.95
2
4-1
43750-99J40-0EP
Bracket, Steering (S) (Black)
Note: W/TRANSOM(S)
Suzuki
$396.95
1
4-2
43750-99J50-0EP
Bracket, Steering (L) (Black)
Note: W/TRANSOM(L)
Suzuki
$396.95
1
6
09282-27002
Oil Seal (26x39x5)
Suzuki
$11.95
1
7
43211-87JL0
Supersedes:
43211-94401
43211-94400
09306-22005
Bush, Swivel Bracket
Suzuki
$26.95
2
8
09160-27012
Washer (27.5x47x1)
Suzuki
$2.95
1
9
43411-939L0
Supersedes:
43411-93900
Plate, Steering Adjuster
Suzuki
$2.95
1
10
43412-93900
Supersedes:
43412-94J00
Cover, Steering Adjuster
Suzuki
$2.95
1
11
29440-93J00
Supersedes:
43419-94J00
Spring, Steering Adjuster
Suzuki
$1.99
$1.95
1
12
09160-08082
Supersedes:
09160-08083
09160-08070
Washer (8.5x16x1.2)
Suzuki
$1.95
1
13
09100-08232
Supersedes:
09100-08168
Bolt (8x30)
Suzuki
$2.99
$2.95
1
14
43755-99J00
Attachment, Steering Bracket
Suzuki
$89.95
1
15
09160-08082
Supersedes:
09160-08083
09160-08070
Washer (8.5x16x1.2)
Suzuki
$1.95
2
16
09108-08286
Stud Bolt
Suzuki
$11.95
2
17
09159-08059
Supersedes:
09159-08026
Nut
Suzuki
$4.73
2
19
09116-06225
Bolt (6x15)
Suzuki
$2.99
$2.95
1
20-1
55321-87J00
Anode, Protection
Note: W/TRANSOM(L)
Suzuki
$6.95
1
20-2
55321-87J10
Anode(Magnesium)
Note: OPT W/TRANSOM(L)
Suzuki
$10.95
1
21
09103-06281
Bolt (6x14)
Note: W/TRANSOM(L)
Suzuki
$2.68
1
