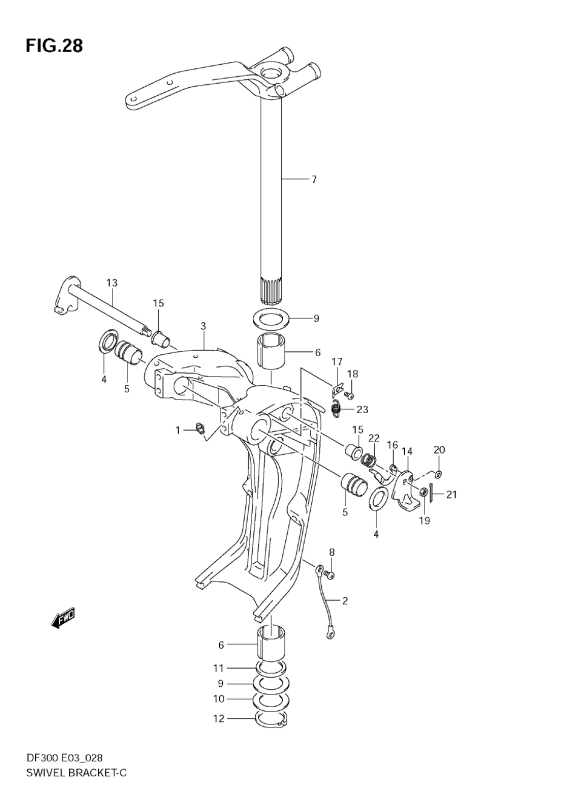

Swivel Bracket
View Larger Photo
Ref #
Part #
Description
Manufacturer
List Price
Your Price
Price is per part
#Req
1
22511-99011
Supersedes:
22511-99010
22511-99003
22511-99002
22511-99001
22511-99000
Nipple, Grease Swivel Brkt
Suzuki
$3.95
4
2
36894-87D00
Lead (Swivel To Mount Brkt)
Suzuki
$12.34
1
4
43114-93J00
Washer, Swivel To Clamp Brkt
Suzuki
$4.95
2
5
43211-93J00
Bush, Clamp Shaft Swivel
Suzuki
$7.95
2
6
43711-97E00
Supersedes:
43711-87D00
Bush, Steering
Suzuki
$10.95
2
7
43750-93J02-0EP
Supersedes:
43750-93J01-0EP
Bracket, Steering (Black)
Suzuki
$936.95
1
8
09125-06063
Screw, Mt Brkt To Swivel Lead (6x10)
Suzuki
$1.64
1
9
09160-39001
Washer, Swivel Bracket (39.5x64x1.0)
Suzuki
$3.95
2
10
09181-39001
Shim, Swivel Bracket (39.5x64x0.3)
Suzuki
$3.95
11
09282-39001
Seal, Pilot Shaft Oil
Suzuki
$5.39
1
12
09380-38003
Circlip, Pilot Shaft Lower
Suzuki
$6.02
1
13-2
41220-93J11
Lever, Tilt Lock
Note: DF300T:980792~ DF300Z:980285~
Suzuki
$74.12
1
14-2
41234-93J11
Lever, Tilt Lock Port
Note: DF300T:980792~ DF300Z:980285~
Suzuki
$33.51
1
15
41224-95E01
Supersedes:
41224-95E00
Bush, Tilt Stopper Rod
Suzuki
$4.01
2
16-1
41230-95E00
Link, Tilt Lock Lever
Suzuki
$23.47
1
16-2
41230-96J00
Link, Tilt Lock Lever
Note: DF300T:980792~ DF300Z:980285~
Suzuki
$21.32
1
17
41233-95E10
Bracket, Tilt Lock Spring
Suzuki
$8.99
$8.95
1
18
09125-06063
Screw, Tilt Lock Spr (6x10)
Suzuki
$1.64
1
19
09140-10032
Supersedes:
09140-10017
Nut, Tilt Lock Lever Port
Suzuki
$1.75
1
20
09160-06082
Supersedes:
09160-06090
09160-06015
Washer, Tilt Lock Lever Link (6.5x13x1.0)
Suzuki
$1.24
1
21
09204-01006
Supersedes:
18348-96300
Pin, Tilt Lk Lever Link Cotte
Suzuki
$1.22
1
22
09440-19028
Spring, Tilt Lock Shaft
Suzuki
$2.98
1
23
09443-10043
Spring, Tilt Lock
Suzuki
$2.95
1
