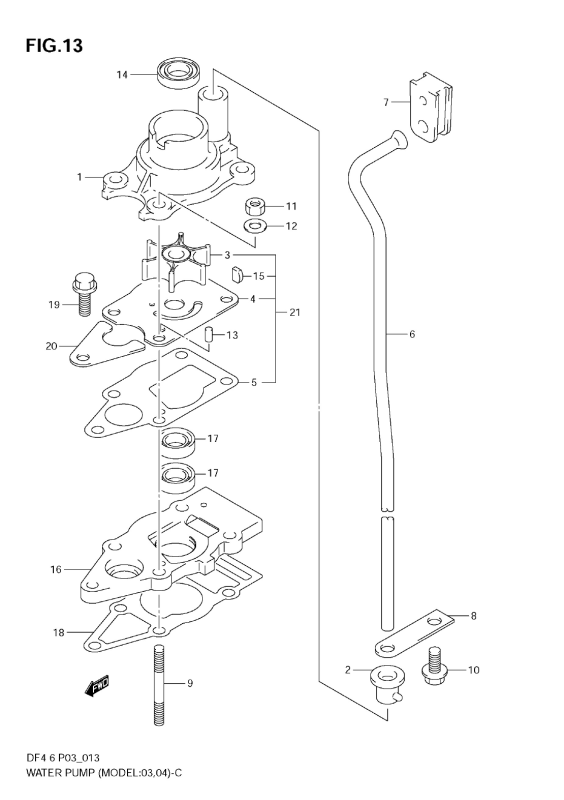

Water Pump (Model:03, 04)
View Larger Photo
Ref #
Part #
Description
Manufacturer
List Price
Your Price
Price is per part
#Req
1
17411-98611
Supersedes:
17411-98610
17411-98600
Case, Water Pump
Suzuki
$64.99
$63.95
1
2
17415-98501
Supersedes:
17415-98500
Grommet, Water Pump
Note: <-17415-91J00
Suzuki
$1.99
$1.95
1
3
17461-98503
Supersedes:
17461-98502
17461-98501
17461-98500
Impeller, Water Pump
Suzuki
$16.95
1
3
18-3097
Aftermarket
replaces: 17461-98503
Suzuki Impeller - 18-3097 - Sierra
$18.99
$15.95
1
3
18-3097
Aftermarket
replaces: 17461-98502
Suzuki Impeller - 18-3097 - Sierra
$18.99
$15.95
1
3
18-3097
Aftermarket
replaces: 17461-98501
Suzuki Impeller - 18-3097 - Sierra
$18.99
$15.95
1
5
17472-91J00
Gasket, Pump Case Panel
Suzuki
$2.95
1
5
18-0761
Aftermarket
replaces: 17472-91J00
Water Pump Case Gasket - 18-0761 - Sierra
$3.95
1
Unavailable
6-1
17561-91J00
Tube, Water (S)
Suzuki
$14.95
1
7-2
17563-91J01
Supersedes:
17563-91J00
Grommet, Water Tube Upper
Note: DF6 MODEL:03
Suzuki
$3.95
1
7-3
17563-91J01
Supersedes:
17563-91J00
Grommet, Water Tube Upper
Note: MODEL:04
Suzuki
$3.95
1
8
17564-98600
Guide, Water Tube
Suzuki
$2.95
1
9
09108-06069
Bolt, Stud
Suzuki
$2.95
4
10
09116-06094
Supersedes:
09116-06092
09116-06126
Bolt (6x15)
Suzuki
$2.95
1
11
09140-06020
Supersedes:
09140-06004
Nut
Suzuki
$1.95
4
12
09160-06082
Supersedes:
09160-06090
09160-06015
Washer (6.5x13x1.0)
Suzuki
$1.95
4
13
09202-04008
Pin, Knock
Suzuki
$1.99
$1.95
1
14
09289-10002
Seal, Oil
Suzuki
$9.95
1
15
09420-03002
Key
Suzuki
$2.95
1
17-1
09282-10008
Supersedes:
59293-91J00
Seal, Oil
Suzuki
$3.55
2
18
56132-91J00
Gasket, Drive Shaft Brg Hsg
Suzuki
$5.95
1
19
09116-06121
Bolt (6x25)
Suzuki
$2.95
1
20
25215-98601
Supersedes:
25215-91J00
Stopper, Shift Rod Guide
Note: <-25215-91J00
Suzuki
$2.99
$2.95
1
21-2
17400-98661
Supersedes:
17400-98660
Kit, Water Pump Repair
Note: OPT MODEL:04
Suzuki
$24.95
1
21-2
18-3266
Aftermarket
replaces: 17400-98661
Water Pump Kit Suzuki - 18-3266 - Sierra
Note: OPT MODEL:04
$27.99
$24.95
1
