Yamaha 40, 50 hp Gearcase Exploded View
Description Customer Reviews Customer Questions & Answers Shipping

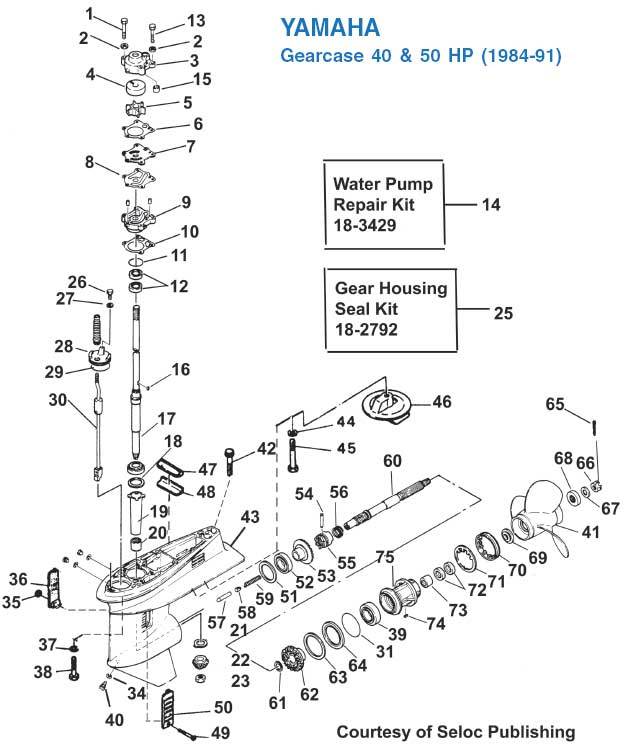

Yamaha Gearcase Exploded View Diagram and Parts
Fits 40 &50 HP (1984-1991)
Figure #DescriptionO.E.M. #Sierra #Qty.
1Bolt, Water Pump Housing97575-08675-00 2
2Washer, Water Pump Housing92990-08600-00 4
3Housing, Wapter Pump663-44311-02-00 1
4Insert, Water Pump663-44322-00-00 18-3435 11
5Impeller6H4-44352-02-00 18-3068 11
6Gasket, Wear Plate to Water Pump663-44315-A0-00 18-0292 221
7Wear Plate, Water Pump663-44323-00-00 1
8Gasket, Wear Plate to Water Pump663-44324-A0-00 18-0294 221
9Base, Water Pump663-44341-0094 1
10Gasket, Pump Base663-44316-A0-00 1
11O-Ring, Pump Base93210-41042-00 18-0298 21
12Oil Seal, Pump Base93101-23070-00 18-0297 22
13 Bolt, Water Pump Housing97395-08045-00 18-0256 22
14Water Pump Repair Kit6H4-W0078-00-00 18-34291
15Water Seal663-44366-00-00 1
16Drive Shaft (short)6H4-45501-00-00 1
16Drive Shaft (long)6H4-45501-10-00 1
17Bearing, Tapered Roller93332-00079-00 1
18Shim (0.5mm)663-45587-00-05 A R
18Shim (0.8mm)663-45587-00-08 A R
18Shim (0.12mm)663-45587-01-12 A R
18Shim (0.30mm)663-45587-01-30 A R
18Shim (0.50mm)663-45587-01-50 A R
19Sleeve, Drive Shaft6H4-45536-00-0 1
20Bearing, Needle93315-32224-00 1
21Bearing (not used 1988 & later)663-45552-00-00 1
23Nut, Pinion Gear90170-12138-00 1
24Key, Woodruff90280-03024-00 18-3305 21
25Gearcase Sea Kit6H4-W0001-20-00 18-27921
26Bolt Plate97095-06016-00 1
27Washer, Plate92990-06600-00 1
28Plate6H4-45321-01-00 1
29O-Ring, Plate 93210-49046-00 1
30Shift Cam Assembly (short shaft)6H4-44150-12-00 1
31O-Ring, Plate93210-66M98-00 18-3305 21
32Shift Cam Assembly (long shaft)90340-08M04-00 2
33Plug, Vent93606-12019-00 2
34Pin, Dowel90430-08020-00 3
35Nut, Nylock90185-05904-00 1
36Cover, Water Inlet (stbd)688-45215-02-00 92990-10100-00 1
37Washer, Locking92990-10100-00 4
38Bolt97078-10040-00 4
39Bearing, Ball93306-00702-00 1
40Plug, Drain688-45341-00-00 1
41Propellervarious 1
42Bolt, Trim Tab97575-08675-00 1
43Casing, Lower6H4-45301-01-EK 1
44Washer, Locking92990-08100 1
45Bolt, Lower Casing97095-08085-00 1
46Tab, Trim664-45371-01-00 1
47Seal, Rubber688-45375-00-00 1
48Guide, Seal Rubber663-45376-00-94 1
49Screw Ovalhead98780-05535-00 1
50Cover, Water Inlet (port)668-45214-02-00 1
51Shim Forward Gear (0.5mm)6H4-45567-00-05 1
51Shim Forward Gear (0.8mm)6H45567-00-08 AR
51Shim Forward Gear (0.12mm)6H4-45567-01-12 AR
51Shim Forward Gear (0.50mm)6H4-45567-01-50 AR
52Bearing, Tapered Roller93332-000V4-00 1
53Gear, Forward6H4-4556-00-00 1
54Pin, Cross (clutch dog)90250-06023-00 1
55Clutch, Sliding663-45631-01-00 1
56Retainer Ring, Cross Pin663-45633-00-00 1
57Plunger, Shift676-45635-00-00 1
58Slide, Shift663-45634-00-00 1
59Spring, Compression60501-16M01-00 1
60Shaft, Propeller679-45611-01-00 1
61Washer, Plate90201-22429-00 1
62Gear, Reverse6H4-45571-00-00 1
63Shim Reverse Gear (0.5mm)663-45577-00-05 AR
63Shim Reverse Gear (0.8mm)663-45577-00-08 AR
63Shim Reverse Gear (0.12mm)663-45577-01-12 AR
63Shim Reverse Gear (0.50mm)663-45577-01-50 AR
64Washer, Thrust663-45576-00-00 1
65Pin, Cotter91490-30030-00 18-23801
66Nut, Castle90171-16011-00 1
67Washer92990-16200-00 1
68Spacer, Prop Mounting (aft)670-45997-02-00 1
69Spacer, Prop Mounting (fore)663-45987-02-00 1
70Nut, Cover697-45384-00-00 1
71Washer, Tab90214-48M03-00 1
72Oil Seal, Bearing Housing93101-22067-00 18-0296 22
73Bearing, Needle93317-22204-00 1
74Key, Bearing Housing90282-04010-00 1
75Housing, Bearing679-45331-0094 1
1Contents of Water Pump Repair Kit 18-3429
2Contents of Gear Housing Seal Kit 18-2792
ARAs required
Average Customer Review for Sierra 18-3429 - Water Pump Repair Kit
Full StarFull StarFull StarFull StarHalf Star
Based On 8 Reviews | Write Review
Full StarFull StarFull StarFull StarEmpty Star
Pump Repair Kit
by Kevin from Hudsonville, Michigan on June 20, 2016
The kit I ordered was not the right one for my motor...not the fault of iboats. I have a Japanese Mariner so it is hard to locate parts for it. The return, however was flawless and handled promptly.
Was this review helpful?
Full StarFull StarFull StarFull StarFull Star
Overall Great Store
by Rocky from Leroy, Michigan on August 08, 2014
I'm totally satisfied with this site. Easy to find the parts, I needed, great price and very fast shipping. Will defiantly use this site in the future.
(1 of 1 people found this review helpful)
Was this review helpful?
Full StarFull StarFull StarFull StarFull Star
running cool
by Michael from Augusta, Missouri on May 10, 2013
perfect, running cool. didnt realize how bad my old was till i saw this one work
(2 of 2 people found this review helpful)
Was this review helpful?
Full StarFull StarFull StarFull StarFull Star
Water pump
by Derek from Napoleonville, Louisiana on May 05, 2013
Everything I needed in the kit at a great price. Thanks.
(2 of 2 people found this review helpful)
Was this review helpful?
Full StarFull StarFull StarFull StarFull Star
nice product
by Dwayne from Mastic Beach, New York on April 24, 2012
glad it came with lower gasket most kits dont
(3 of 3 people found this review helpful)
Was this review helpful?
Full StarFull StarFull StarFull StarFull Star
water pump replacement
by Donny from Pasadena, Texas on November 04, 2011
Hey Guys Thanks for the water pump replacement kit, everything came out great and my motor works better than when I bought it. The motor has not been opened since 1985, that's about 26 years, full power has been restored captain! :) Thanks again guys!
(2 of 2 people found this review helpful)
Was this review helpful?
Full StarFull StarFull StarFull StarFull Star
product and service
by Gary from Weatherford, Texas on June 13, 2011
Parts I ordered were a match and the delivery was prompt. I am a satisfied customer and will be a return customer. Gary
(7 of 7 people found this review helpful)
Was this review helpful?
Full StarFull StarEmpty StarEmpty StarEmpty Star
Water Pump
by Chris from Fenton, Missouri on June 02, 2010
This kit, for the 40HP Yamaha 1986 has all the right gaskets, cup, impeller, etc., however, the bolts that were sent to me were all too short. I had to use the old bolts. Be warned.
(7 of 7 people found this review helpful)
Was this review helpful?
Average Customer Review for Sierra 18-3068 Impeller Yamaha 30-50Hp
Full StarFull StarFull StarFull StarFull Star
Based On 2 Reviews | Write Review
Full StarFull StarFull StarFull StarFull Star
Yamaha Impeller
by Mark from Hudson, Iowa on July 16, 2012
Mechanic said it would take an hour and a halp to install, but it was done in less than an hour with no problems. It fit just perfectly and you can't put it on wrong.
(1 of 1 people found this review helpful)
Was this review helpful?
Full StarFull StarFull StarFull StarFull Star
PERFECT PARTS EVERY TIME.
by ROY from Marietta, New York on June 15, 2012
I WAS ABLE TO SEARCH AND FIND THE PARTS I NEEDED FOR MY MOTOR EASILY. SHIPPING IS SUPER FAST. PART WAS A FERFECT FIT AND WORKS AS IT SHOULD.
(2 of 3 people found this review helpful)
Was this review helpful?
Average Customer Review for Lower Unit Seal Kit - 18-2792 - Sierra
Full StarFull StarFull StarFull StarFull Star
Based On 1 Review | Write Review
Full StarFull StarFull StarFull StarFull Star
as expected
by Tim from Walhalla, North Dakota on July 13, 2016
worked as expected
Was this review helpful?
This product ships in 1 to 3 business days.
Add to Cart and enter your Postal Code to determine the shipping charges.
Most products and orders leave our warehouse in 1 business day. However, select items may take more processing time. Alaska and Hawaii orders please add 1 additional warehouse processing day.
Standard Shipping Policies
Insert Cup - Sierra
View Larger Photo
Price: $8.98
 Discontinued
Part # 18-3435
No Reviews
Write Review  |  Ask Question
Replaces OEM part #
  • YAMAHA 663-44322-00-00
(Discontinued)
Yamaha Outboard Bolts
View Larger Photo
Price: $2.95
 (Out of stock)
Part # 18-0256
No Reviews
Write Review  |  Ask Question
Replaces OEM part #
  • YAMAHA 97095-08045-00
Bolt Dimensions: 8-1.25 x 45mm

(Out Of Stock)
Yamaha 6H4-W0078-A0-00 replacement parts
View Larger Photo
Price: $33.95
Save: $17.24
(33% Off $51.19)
Part # 18-3429
SHIPS TODAY!* if ordered in 8 hrs 37 mins.
Full StarFull StarFull StarFull StarHalf Star
8 Customer Reviews
Write Review  |  Ask Question
Replaces OEM part #
  • YAMAHA 6H4-W0078-A0-00
  • YAMAHA 6H4-W0078-00-00
  • YAMAHA 6H4-W0078-01-00
Contains:
    (1) 18-0292 Wear Plate to Gear Case Mounting Gasket - replaces O.E. # 688-44315-A0-00
    (1) 18-3435 Insert Cup - replaces O.E. # 663-44322-00-00
    (1) 18-0294 Wear Plate to Pump Base Gasket - replaces O.E. # 663-44324-A0-00
    (1) 18-3068 Impeller - replaces O.E. # 6H4-44352-02-00, 6H4-44352-00-00
    (2) 18-0256 Bolt - replaces O.E. # 97395-08045-00
    (1) 18-3436 Impeller Plate - replaces O.E. # 663-44323-00-00
Yamaha 90280-03024 replacement parts
View Larger Photo
Price: $5.95
Part # 18-3305
SHIPS TODAY!* if ordered in 8 hrs 37 mins.
No Reviews
Write Review  |  Ask Question
Replaces OEM part #
  • MERCURY MARINE 28-81912M
  • YAMAHA 90280-03024
  • for Mercury/Mariner models: 6C-D, 8C, 9.9c, 15C
Yamaha 93101-22067 replacement parts
View Larger Photo
Price: $6.04
Save: $3.35
(35% Off $9.39)
Part # 18-0296
SHIPS TODAY!* if ordered in 8 hrs 37 mins.
No Reviews
Write Review  |  Ask Question

Shaft Size - 0.866"
Outer Diameter - 1.417"
Inner Diameter - 23 mm
Width - 0.236"


Replaces OEM part #

  • MERCURY MARINE 26-82233M
  • MERCURY MARINE 26-83406M
  • YAMAHA 93101-22067-00
  • YAMAHA 93101-22M00-00
Mariner Water Pump Gaskets
View Larger Photo
Price: $3.95
 Discontinued
Save: $0.84
(17% Off $4.79)
Part # 18-0292
No Reviews
Write Review  |  Ask Question
Replaces OEM part #
  • MERCURY MARINE 27-81417M
  • YAMAHA 663-44315-A0-00

Sierra part #18-0292 Wear plate to pump housing gaskets

Sierra has years of experience and manufacturing expertise to ensure an exact fit for numerous styles of gaskets. During manufacturing of this gasket, a rubber and fiber material is cut with precision to original equipment standards. No details are missed in cutting the correct diameter and location of openings to ensure no cutting or trimming when installing.

The wear plate to pump housing gasket comes as a complete set with precise CAD cut gasket to eliminate hand cutting or trimming. Typical thickness for these products can range up to 1/16". Matching the wear plate to pump housing can have some variance when joining the two surfaces.

It is recommended during installation to clean both surfaces to the bare metal and apply a thin layer of RTV silicone sealer on the surface side to ensure the ultimate seal. They are designed for high-temperature capable of exceeding 500 degrees Fahrenheit.
(Discontinued)
Yamaha 91490-30030 replacement parts
View Larger Photo
Price: $19.95
 (Out of stock)
Save: $7.04
(26% Off $26.99)
Part # 18-2380-9
No Reviews
Write Review  |  Ask Question
Replaces OEM part #
  • YAMAHA 91490-30030
Package of 10

Cotter Pin for Yamaha Outboard 91490-30030, GLM 22090 22070

(Out Of Stock)
Yamaha 93101-23070 replacement parts
View Larger Photo
Price: $8.95
Save: $2.54
(22% Off $11.49)
Part # 18-0297
SHIPS TODAY!* if ordered in 8 hrs 37 mins.
No Reviews
Write Review  |  Ask Question
Shaft Size - 0.906"
Outer Diameter - 1.457"
Width - 0.236"

Replaces OEM part #
  • MERCURY MARINE 26-82234M
  • YAMAHA 93101-23070-00
Wear Plate To Pump Base Gasket - Sierra
View Larger Photo
Price: $22.95
 Discontinued
Save: $9.87
(30% Off $32.82)
Part # 18-0294-9
No Reviews
Write Review  |  Ask Question
Replaces OEM part #
  • MERCURY MARINE 27-81421M
  • YAMAHA 663-44324-A0-00
  • Pkg. of 2
(Discontinued)
O-Ring for Mercury/Mariner 25-82275M, Yamaha Outboard 93210-41042-00, GLM 45250 - Sierra
View Larger Photo
Price: $4.29
 (Out of stock)
Save: $1.70
(28% Off $5.99)
Part # 18-0298
No Reviews
Write Review  |  Ask Question
Dimensions ( mm )
I.D. 41.50
Width 3.0

Replaces OEM part #
  • MERCURY MARINE 25-82275M
  • YAMAHA 93210-41042-00
(Out Of Stock)
Yamaha 6H4-44352-02-00 replacement parts
View Larger Photo
Price: $23.95
Save: $7.24
(23% Off $31.19)
Part # 18-3068
SHIPS TODAY!* if ordered in 8 hrs 37 mins.
Full StarFull StarFull StarFull StarFull Star
2 Customer Reviews
Write Review  |  Ask Question
Replaces OEM part #
  • YAMAHA 6H4-44352-00-00
  • YAMAHA 6H4-44352-01-00
  • YAMAHA 6H4-44352-02-00
For: Yamaha 30, 40, 50 hp.
Yamaha 6H4-W0001-21-00 replacement parts
View Larger Photo
Price: $45.95
 (Out of stock)
Save: $5.54
(10% Off $51.49)
Part # 18-2792
Full StarFull StarFull StarFull StarFull Star
1 Customer Review
Write Review  |  Ask Question
Replaces OEM part #
  • YAMAHA 6H4-W0001-C0-00
  • YAMAHA 6H4-W0001-21-00
  • YAMAHA 6H4-W0001-20-00
Kit Contains:
    (1) 18-0292 Wear Plate to Pump Housing Gasket - replaces O.E. # 663-44315-A0-00
    (1) 18-0294 Wear Plate to Pump Base Gasket - replaces O.E. # 663-44324-A0-00
    (2) 18-4698 Drain or Fill Washer Gasket - replaces O.E. # YSG-14090-90-8G
    (2) 18-0296 Oil Seal - replaces O.E. # 93101-22067-00
    (2) 18-0297 Oil Seal - replaces O.E. # 93101-23070-00
    (1) 18-0298 O-Ring - replaces O.E. # 93210-41042-00
    (1) 18-0299 O-Ring - replaces O.E. # 93210-66M98-00
    (1) 18-0293 Pump Base to Gearcase Gasket - replaces O.E. # 663-44316-A0-00
(Out Of Stock)
