Yamaha V4 (1984-92) Gearcase Exploded View
Description Customer Reviews Customer Questions & Answers Shipping

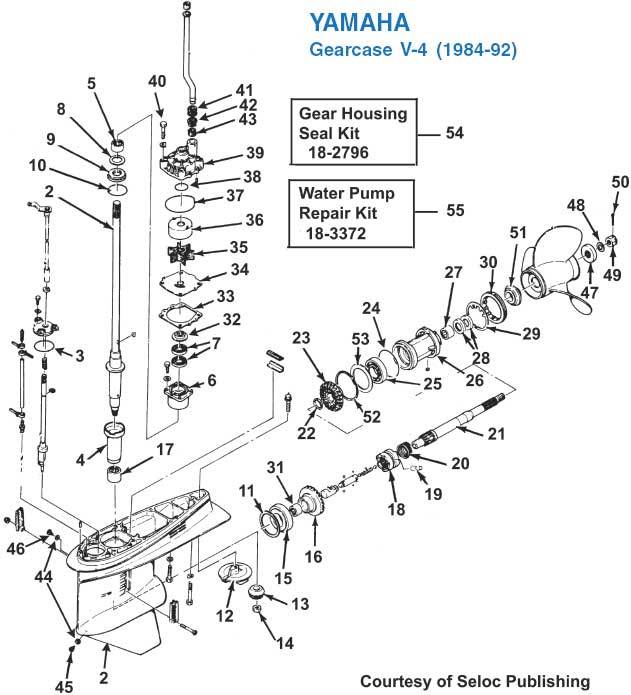

Yamaha Gearcase Exploded View Diagram and Parts
Fits V-4 (1984-1992)
Figure #DescriptionO.E.M. #Sierra #Qty.
1Housing,Gearcase6E5-45301-03EK 1
2Drive Shaft (long)6E5-45501-01-00 1
2Drive Shaft (x-long)6E5-45501-21-00 1
3O-Ring, Cover93210-5867-00 1
4Sleeve, Drive shaft6E5-45536-00-00 1
5Bearing, Needle93315-430V5-00 1
6Housing, Bearing6E5-45331-0094 1
7Seal Drive Shaft93101-28M16-00 18-0265 12
8Shim (0.10mm)6E5-45587-01-10 AR
8Shim (0.12mm)6E5-45587-01-12 AR
8Shim (0.15mm)6E5-45587-01-15 AR
8Shim (0.18mm)6E5-45587-01-18 AR
8Shim (0.30mm)6E5-45587-01-30 AR
8Shim (0.40mm)6E5-45587-01-40 AR
8Shim (0.50mm)6E5-45587-01-50 AR
9Bearing, Taper93341-930U0-00 1
10O-Ring, Housing93210-54534-00 1
11Shim (0.10mm)6E5-45567-01-10 AR
11Shim (0.12mm)6E5-45567-01-12 AR
11Shim (0.15mm)6E5-45567-01-15 AR
11Shim (0.18mm)6E5-45567-01-18 AR
11Shim (0.30mm)6E5-45567-01-30 AR
11Shim (0.40mm)6E5-45567-01-40 AR
11Shim (0.50mm)6E5-45567-01-50 AR
12Trim Tab6E5-45371-01-00 1
13Gear, Pinion6E5-45551-02-00 1
14Nut, Pinion90170-16M01-00 1
15Bearing, Forward Gear93332-000U7-00 1
16Gear, Forward6E5-45560-01-00 1
17Bearing, Needle93315-628U9-00 1
18Clutch Dog6R5-45631-01-00 1
19Cross, Pin Clutch90250-08M07-00 1
20Retainer, Cross Pin6E5-45631-01-00 1
21Shaft, Propeller6E5-45611-01-00 1
22Washer, Thrust90201-30M92-00 1
23Gear, Reverse6E5-45571-04-00 1
24O-Ring, Bearing Housing93210-86M39-00 1
25Bearing, Reverse Gear93306-208U0-00 1
26Housing, Bearing6E5-45332-00-94 1
27Bearing, Needle93315-430U8-00 1
28Seal, Prop Shaft93101-30M17-00 18-0266 12
29Washer, Tab688-45383-02-00 1
30Nut, Cover688-45384-00-00 1
31Bearing, Forward Gear93315-425U7-00 1
32Cover, Oil Seal6E5-45344-00-00 1
33Gasket, Water Pump6E5-44315-A0-00 18-0244 1 21
34Wear Plate, Water Pump6E5-44323-00-00 18-3344 21
35Impeller6E5-44352-00-00 18-3071 21
36Insert, Water Pump6E5-44322-00-00 1
37O-Ring, Water Pump93210-86M38-00 18-7485 1 21
38O-Ring, Water Pump93210-37M67-00 18-7483 1 21
39Housing, Water Pump6E5-44311-00-00 18-31701
40Bolt, Water Pump97080-08045-00 4
41Damper, Water Seal6E5-44366-00-00 1
42Cover, Pump Housing6E5-44312-00-0 1
43Damper, Water Seal6E5-44365-00-00 1
44Gasket, Drain Plug90430-08020-00 2
45Drain Plug, Lower688-45341-00-00 1
46Drain Plug, Upper90340-08M04-00 1
47Spacer, Prop688-45997-01-00 18-42741
48Washer, Prop Nut92990-18200-00 1
49Nut, Prop90171-18M04-00 18-37261
50Pin, Cotter91490-40030-00 18-37351
51Washer, Thrust6E5-45987-01-00 1
52Shim (0.10mm)6L6-45577-00-10 AR
52Shim (0.12mm)6L6-45577-00-12 AR
52Shim (0.15mm)6L6-45577-00-15 AR
52Shim (0.18mm)6L6-45577-00-18 AR
52Shim (0.30mm)6L6-45577-00-30 AR
52Shim (0.40mm)6L6-45577-00-40 AR
52Shim (0.50mm)6L6-45577-00-50 AR
53Washer, Thrust6E5-45576-00-00 1
54Gear Housing Seal Kit6E5-W0001-51-00 18-27961
55Water Pump Repair Kit6E5-W0078-00-00 18-33721
1Contents of Gear Housing Seal Kit 18-2796
2Contents of Water Pump Repair Kit 18-3372
ARAs required
