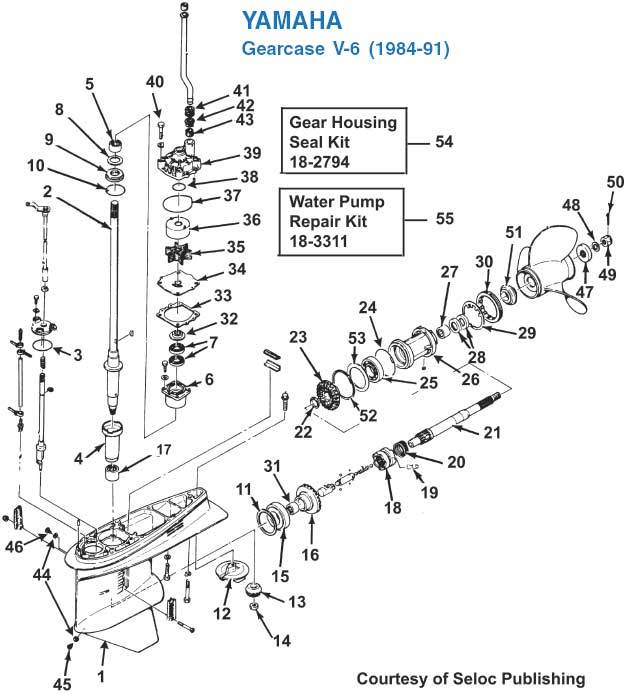

Yamaha Gearcase Exploded View Diagram and Parts
Fits V-6 (1984-1991)

Figure #	Description	O.E.M. #	Sierra #	Qty.
1	Housing, Gearcase	6J9-45301-02-EK		1
2	Drive Shaft (long)	6G5-45501-01-00		1
2	Drive Shaft (x-long)	6G5-45501-21-00		1
3	O-Ring, Plate	93210-58677-00		1
4	Sleeve, Drive Shaft	6G5-45536-01-00		1
5	Bearing, Needle	93315-430V5-00		1
6	Housing, Bearing	6E5-45331-00-94		1
7	Seal, Drive Shaft	93101-28M16-00	18-0265 ¹	2
8	Shim (0.10mm)	6E5-45587-01-10		AR
8	Shim (0.12mm)	6E5-45587-01-12		AR
8	Shim (0.15mm)	6E5-45587-01-15		AR
8	Shim (0.18mm)	6E5-45587-01-18		AR
8	Shim (0.30mm)	6E5-45587-01-30		AR
8	Shim (0.40mm)	6E5-45587-01-40		AR
8	Shim (0.50mm)	6E5-45587-01-50		AR
9	Bearing, Tapered	933410-930U0-00		1
10	O-Ring, Housing	93210-54534-00		1
11	Shim (0.10mm)	6G5-45567-01-10		AR
11	Shim (0.12mm)	6G5-45567-01-12		AR
11	Shim (0.15mm)	6G5-45567-01-15		AR
11	Shim (0.18mm)	6G5-45567-01-18		AR
11	Shim (0.30mm)	6G5-45567-01-30		AR
11	Shim (0.40mm)	6G5-45567-01-40		AR
11	Shim (0.50mm)	6G5-45567-01-50		AR
12	Trim Tab	6J9-45371-01-00	18-6035	1
13	Gear, Pinion	6G5-45551-01-00		1
14	Nut,Pinion	90170-16M01-00		1
15	Bearing, Forward Gear	93332-000V3-00		1
16	Gear, Forward	6G5-45631-00-00		1
17	Bearing, Needle	90250-08M07-00		1
18	Clutch, Dog	6E5-45633-01-00		1
19	Cross Pin, Clutch	90250-08M07-00		1
20	Retainer, Cross Pin	6E5-45633-01-00		1
21	Shaft, Propeller	6J9-45611-01-00		1
22	Washer, Thrust	90201-30M92-00		1
23	Gear, Reverse	6G5-45571-02-00		1
24	O-Ring, Bearing Housing	93210-97M55-00	18-0275 ¹	1
25	Bearing, Reverse Gear	93306-209U0-00		1
26	Bearing Housing Assembly	6J9-45332-00-94		1
27	Bearing, Needle	93315-430U8-00		1
28	Seal, Prop Shaft	93101-30M17-00	18-0266 ¹	2
29	Washer, Tab	9G5-45383-01-00		1
30	Nut, Cover	6G5-45384-00-00		1
31	Bearing, Needle	93315-425V3-00		2
32	Cover, Oil Seal	6E5-45344-00-00		1
33	Gasket, Wear Plate	6E5-44315-A0-00	18-0244 ¹ ²	1
34	Wear Plate	6G5-44323-00-00	18-3345 ²	1
35	Impeller	6E5-44352-00-00	18-3071 ²	1
36	Insert, Water Pump	6E5-44322-00-00	18-3177 ²	1
37	O-Ring, Water Pump	93210-86M38-00	18-7485 ¹ ²	1
38	O-Ring, Water Pump	93210-37M67-00	18-7483 ¹ ²	1
39	Housing, Water Pump	6E5-44311-00-00	18-3170	1
40	Bolt, Water Pump	97080-08045-00		4
41	Damper, Water Seal	6E5-44366-00-00		1
42	Cover, Pump Housing	6E5-44312-00-00		1
43	Damper, Water Seal	6E5-44365-00-00		1
44	Gasket, Drain Plugs	90430-08020-00		2
45	Drain, Plug, Lower	688-45341-00-00		1
46	Drain Plug, Upper	90340-08M04-00		1
47	Spacer, Prop	688-45997-01-00	18-4274	1
48	Washer, Prop	92990-18200-00		1
49	Nut, Prop	90171-18M04-00	18-3726	1
50	Pin, Cotter	91490-40030-00	18-3735	1
51	Washer, Thrust	6E5-45987-00-00		1
52	Shim (0.10mm)	6G5-45577-02-10		AR
52	Shim (0.12mm)	6G5-45577-02-12		AR
52	Shim (0.15mm)	6G5-45577-02-15		AR
52	Shim (0.18mm)	6G5-45577-02-18		AR
52	Shim (0.30mm)	6G5-45577-02-30		AR
52	Shim (0.40mm)	6G5-45577-02-40		AR
52	Shim (0.50mm)	6G5-45577-02-50		AR
53	Washer, Thrust	6G5-45576-00-00		1
54	Gear Housing Seal Kit	6G5-W0001-21-00	18-2794	1
55	Water Pump Repair Kit	6G5-W0078-00-00	18-3311	1

¹	Contents of Gear Housing Seal Kit 18-2794
²	Contents of Water Pump Repair Kit 18-3311
AR	As required
