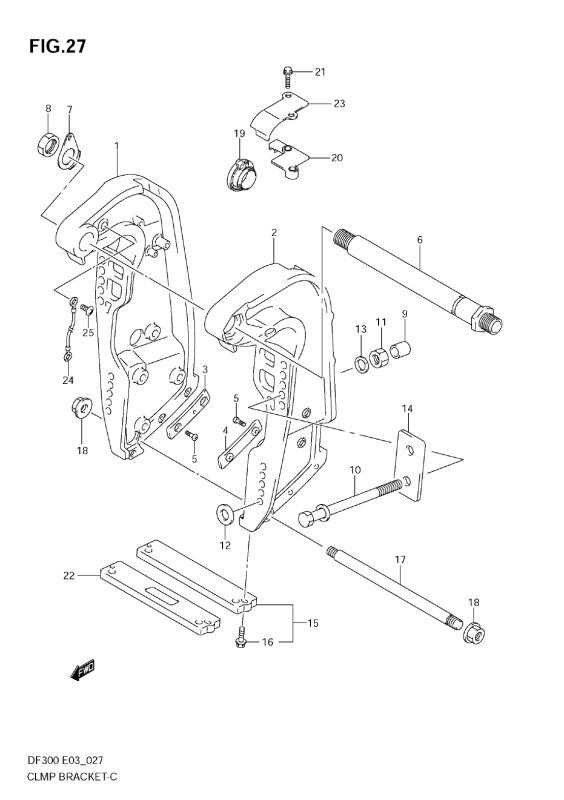

Clamp Bracket
View Larger Photo
Ref #
Part #
Description
Manufacturer
List Price
Your Price
Price is per part
#Req
1-3
41111-93J14-0EP
Supersedes:
41111-93J13-0EP
41111-93J12-0EP
41111-93J11-0EP
Bracket, Clamp Starboard (Black)
Note: MODEL:10~
Suzuki
$462.95
1
2-4
41121-93J06-0EP
Supersedes:
41121-93J05-0EP
41121-93J04-0EP
41121-93J03-0EP
41121-93J02-0EP
Bracket, Clamp Port
Note: DF300T:110001~ DF300Z:110001~
Suzuki
$462.95
1
3-2
41117-93J01
Supersedes:
41117-93J00
Plate, Clamp Brkt Lower Starboard
Note: DF300T:980090~ DF300Z:980032~
Suzuki
$13.95
1
4-2
41122-93J01
Supersedes:
41122-93J00
Plate, Clamp Brkt Lower Port
Note: DF300T:980090~ DF300Z:980032~
Suzuki
$13.95
1
5
09125-06063
Screw, 6x10
Suzuki
$1.76
4
7-2
41135-93J11
Supersedes:
41135-93J10
Washer, Clamp Bracket Shaft
Note: MODEL:10~
Suzuki
$5.95
1
8
09159-22006
Supersedes:
09159-22003
09159-22004
Nut, Clamp Bracket Shaft
Suzuki
$19.95
1
9
41153-93J00
Cap, Transom Bolt
Suzuki
$3.95
6
10-1
09100-12086
Bolt, Transom (12.7x150)
Suzuki
$25.34
6
10-2
09100-12092
Bolt, Transom (12.7x75)
Note: OPT
Suzuki
$16.95
6
10-3
09100-12085
Bolt, Transom (12.7x115)
Note: OPT
Suzuki
$17.95
6
11
09159-12062
Nut, Transom Bolt (12.7x19)
Suzuki
$7.15
6
12
09160-13017
Washer, Transom (13.2x45x5)
Suzuki
$9.95
4
13
09160-13016
Washer, Transom (13.2x26x3)
Suzuki
$3.95
6
14
41155-93J01
Supersedes:
41155-93J00
Plate, Transom
Suzuki
$16.32
$13.95
2
15
55320-94900
Zinc Set, Protection
Suzuki
$39.42
1
16
09116-06121
Bolt (6x25)
Suzuki
$2.95
2
18
09159-14020
Nut
Suzuki
$4.95
2
19
48140-93J00
Cam, Tilt Limit Switch
Suzuki
$11.95
1
20
48144-93J00
Holder, Tilt Limit Switch
Suzuki
$8.95
1
21
09103-06278
Bolt, Sw Holder (6x20)
Suzuki
$1.95
2
22
55321-94910
Anode (Magnesium)
Note: OPT
Suzuki
$39.73
1
23
48145-93J00
Cover, Tilt Limit Switch
Suzuki
$8.95
1
24
36894-87D00
Lead (Clamp To Swivel)
Suzuki
$12.34
1
25
09125-06063
Screw (Clamp To Swivel Lead)
Suzuki
$1.76
1
