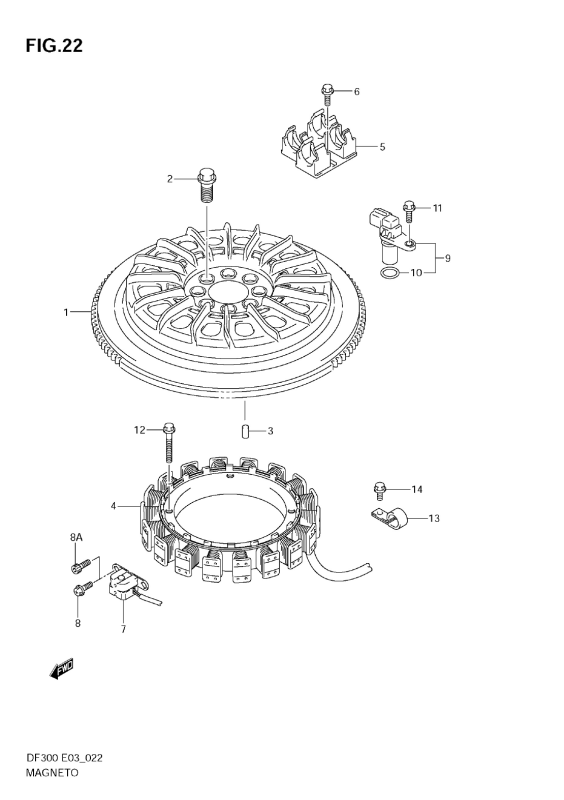

Magneto
View Larger Photo
Ref #
Part #
Description
Manufacturer
List Price
Your Price
Price is per part
#Req
1-1
32102-93J01
Supersedes:
32102-93J00
Flywheel
Suzuki
$906.95
1
1-2
32102-98J00
Flywheel
Note: DF300T:110001~ DF300Z:110001~
Suzuki
$906.95
1
2
09103-12071
Bolt, Flywheel
Suzuki
$2.87
8
3
09202-06031
Pin, Flywheel
Suzuki
$1.79
1
4
32120-93J00
Coil, Battery Charging
Suzuki
$517.95
1
5
32131-93J00
Holder, Stator Connecting
Suzuki
$6.95
1
6
01550-06167
Supersedes:
01114-06168
Bolt, Holder
Suzuki
$2.95
2
7-2
32160-87L00
Supersedes:
32160-87J10
Coil, Ignition Timing
Note: MODEL:10
Suzuki
$134.69
1
7-3
32160-88L00
Coil, Ignition Timing
Note: DF300T:110001~ DF300Z:110001~
Suzuki
$111.95
1
8
02162-05167
Screw, Ignition Timing Coil
Note: DF300T:~980662 DF300Z:~980241
Suzuki
$1.99
$1.95
2
8A
09106-05030
Bolt, Ignition Timing Coil
Note: DF300T:980663~ DF300Z:980242~
Suzuki
$1.95
2
9
33220-69J00
Sensor, Cam Position
Suzuki
$97.95
3
10
33221-42F00
O Ring
Suzuki
$5.95
3
11
01550-06167
Supersedes:
01114-06168
Bolt, Cam Position Sensor
Suzuki
$2.95
3
12
09103-06231
Bolt, Stator Base
Suzuki
$2.20
4
13
09403-13408
Clamp, Stator Lead Wire
Suzuki
$5.99
$5.95
2
14
01550-06127
Supersedes:
01117-06122
Bolt, Clamp
Suzuki
$1.92
2
